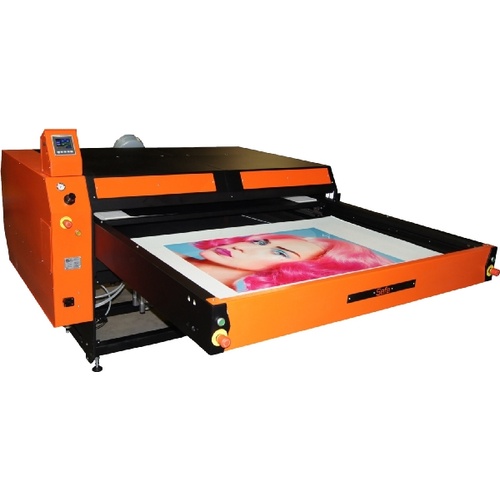

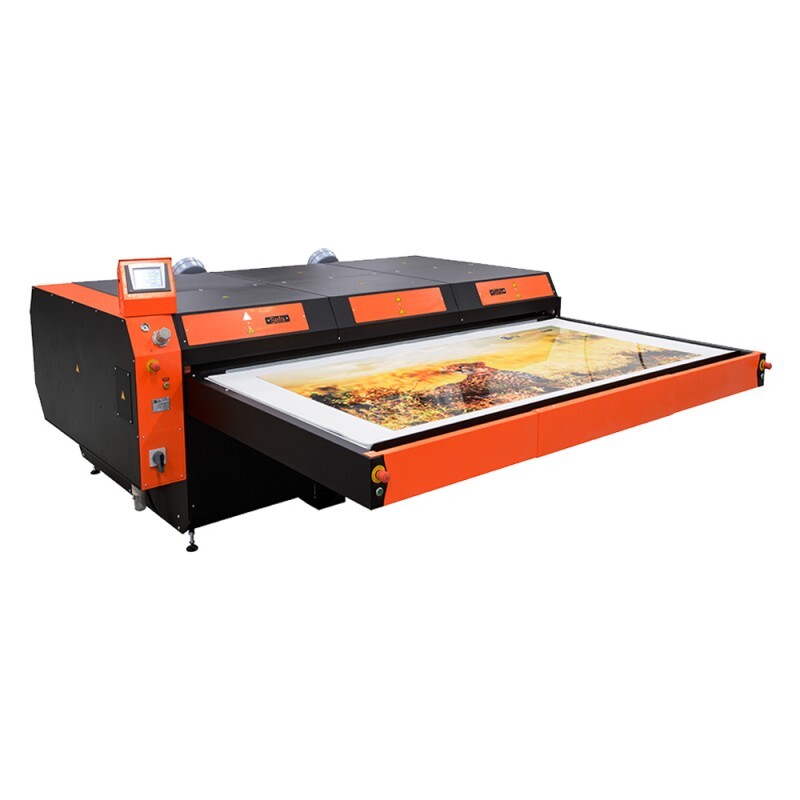

Large format, motorised two-drawer pneumatic press.

Suitable for: large-format textile prints, sublimating on large-format textiles and large-format rigid substrates.

Strengths:

  • Automatic drawer opening, closing and switching functions
  • Four independent, concentric heating surfaces for uniform heat application across the whole platen
  • Allows background tasking on the free platen
  • Six pneumatic cylinders ensure uniform pressure across the whole platen
  • Large touch-screen control panel
  • Includes Nomex-covered heat platen
  • Includes dual air extractor.
  • Designed and manufactured in France
  • Two-year machine warranty
  • Ten-year warranty on heating elements

Electronics :

  • Touch electronics developed by Sefa
  • Precise and fast regulation (PID control)
  • 4 recordable programs
  • Counter with reset
  • Double timer
  • Energy saving


Type Pneumatic
Operation Slide - Tray with drawer
Platen size 255x130 cm / 100x51 "
Useful size 250x125 cm / 98"x49"
Max thickness 45 mm
Weight 2180 Kg / 4806 lbs
Pressure 318 gr/cm²
°C / °F Max 220 °C / 429 °F
Power 37000 W
Power supply 400 V 3-phases + Neutral + Ground
Amperage 56 A
Applications ChromaLuxe, Sublimation Rigid Substrate, Textile Sublimation
Dimension 1446x3202x3007 mm / 57x126x118 "
SKU SEFA2513
Shipping Weight 2200.0000kg
Shipping Width 1.500m
Shipping Height 3.100m
Shipping Length 3.300m
Shipping Cubic 15.345000000m3
